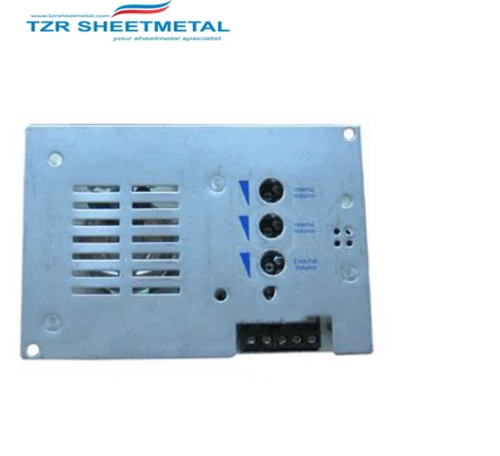

Quality primacy Amplifier Back Plate
Quality primacy Amplifier Back Plate
Quality primacy Amplifier Back Plate
Quality primacy Amplifier Back Plate
Quality primacy Amplifier Back Plate
Quality primacy Amplifier Back Plate

Review

Description

Feature:

Category:Electronic Controls / Audio

Method:Precision Sheet Metal Fabrication

Description:Dim 9″ x 18″

Material:5052 H32 .063″ thick

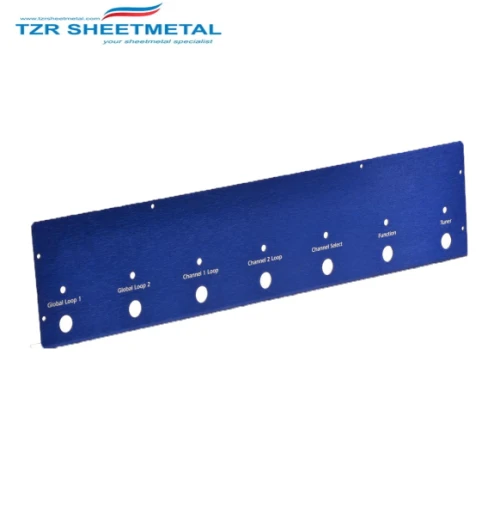

Finish:Blue and Clear Anodize with Selective Screen Printing.

Equipment Used:CNC Turret Press, Press Brake, Time Saver, Part required 6 forming hits.50 to 250 parts per year. Fabricated no tool charge

Introduction:

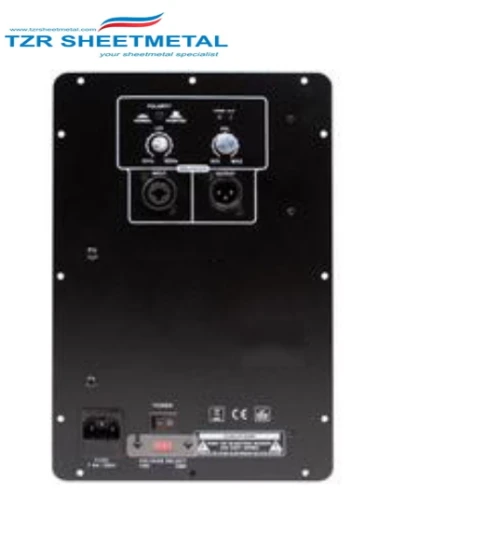

Plate Amplifiers gives you the ability to build your own powered speaker cabinets and powered subwoofer cabinets. It is a Class AB amplifier designed for line array subwoofer enclosures. It has a power rating of 150 Watts RMS and 300 Watts Peak and operates at a minimum 4 ohm load. This plate amplifier offers Master volume control, LPF Adjustment, and a Polarity Switch. This amp also has overload and short circuit protection. When paired with the right speaker driver and enclosure, these plate amplifiers produce the loud, clear, and clean sound to reinforce your line array loudspeaker system. With your purchase, you will receive one 150 Watt Plate Amplifier for Line Array Subwoofers pictured and described above.

Application:

Plate Amplifier for Subwoofer Cabinets.

General Fuction:

Controls: Master Volume Controls | LPF (Low Pass Filter) Adjustment Line Input: 1/4 Inch and XLR Combo Jack.  Polarity Switch: Normal / Inverted. Overload Protection, Over Current Protection, Short Circuit Protection.
